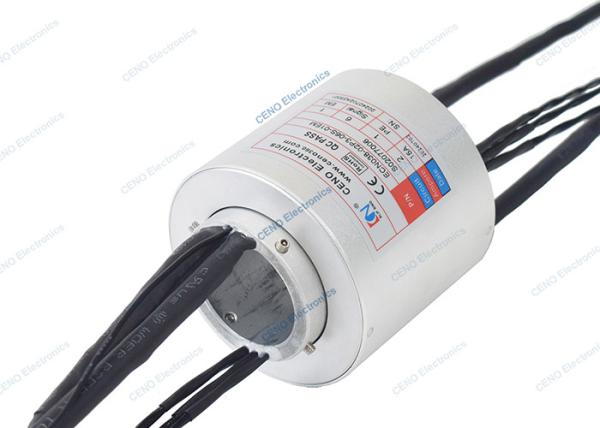

Low Temperature Slip Ring With Through Bore 38mm & Ethernet Signal For Industry

  • 1
  • 2
  • 3

Brand Name : CENO

Model Number : ECN038-02P3-06S-01EM

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 500pcs per month

Delivery Time : 1 week

Packaging Details : Carton/As request

Circuits & Current : 2 circuits*15A; 1* PE; 3 Group * 422/232 Signal; 1 Group * 100M Ethernet

Contact material : Precious Metal / Gold to Gold

Working temperature : -40℃ ~ +80℃

Operating speed : 0~300rpm

Rating Voltage : 0~380VAC/VDC

Dielectric strength : ≥1000VAC@50Hz

Isolation resistance : ≥500MΩ@500VDC

Contact resistance : 30mΩ (50rpm)

Housing material : Aluminum Alloy

Working humidity : 60 %RH

IP protection grade : IP54

Lead wire length : Rotor : 300mm Stator :300mm

Inner Diameter : Ø38mm

External Diameter : Ø79mm

Installation : Fix rotor side upon Shaft with screws

Lead wire size : AWG17# 22# Soft rubber wire; 2 core twisted shielded wire

Contact Now

Low Temperature Slip Ring with through bore 38mm & Ethernet Signal For Industry

ECN038-02P3-06S-01EM is CENO new low temperature slip ring which combine electric power, RS422 / 232 signal and Ethernet Signals, and working stably within temperature -40℃ to +80℃. CENO High / low temperature slip ring is one of function slip ring and has features of advanced materials to suit the working environment to avoid low temperature affecting the physical and electrical properties of the material. For more information please contact CENO experts.

Features

  • Through bore 3-980mm option
  • Stable transmitting in low temperature & comply with EMC
  • Can be integrated various data
  • Easy installation

Applications

  • High altitude airborne equipment
  • Military equipment
  • Packing machinery
  • Polar region
  • Medical equipment

Optional

  • Circuits, Voltage, Current
  • ID / OD diameter
  • Contact / Housing Materials
  • Working temperature
  • IP Grade & Working speed


Specification

ECN038-02P3-06S-01EM

 Specification
Current & Circuits 2 Circuits * 15A; 1* PE; 3 Group * 422/232 Signal; 1 Group * 100M Ethernet
Rating Voltage 0 ~ 380VAC / VDC
Dielectric strength ≥1000VAC@50Hz
Isolation resistance ≥500MΩ@500VDC
Electrical Noise ≤70mΩ (50rpm)
IP Grade IP54
Working humidity ≤ 60%
Working temperature -40℃ ~ +80℃
Inner diameter Ø38.1mm
Operating speed 0~300 rpm
Contact material Precious Metal / Gold to Gold
Housing material Aluminum Alloy
Lead wire size

AWG17# 22# Soft rubber wire

2-core twisted shielded wire
Lead wire length Rotor side: 300mm; Stator side: 300mm
Rotation Way Rotor side fixed on guest main shaft with screws

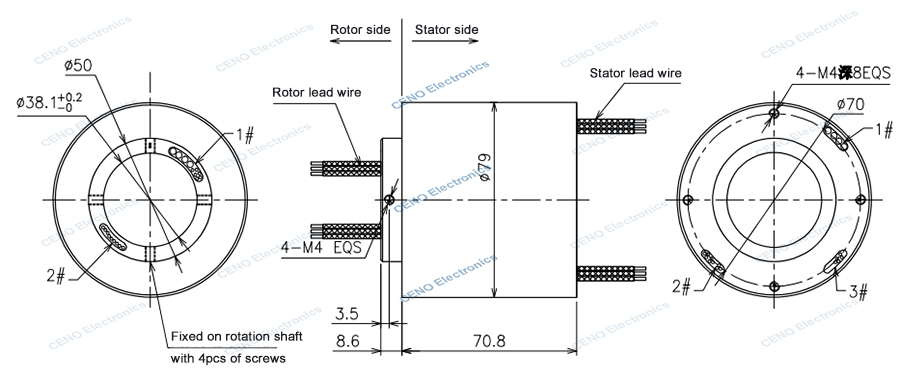

Outline Drawing

Low Temperature Slip Ring With Through Bore 38mm & Ethernet Signal For Industry

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Low Temperature Slip Ring With Through Bore 38mm & Ethernet Signal For Industry

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Low Temperature Slip Ring With Through Bore 38mm & Ethernet Signal For Industry

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
