Function Low Temperature Through Hole Slip Ring with ID80 Rotary Electrical Signal Joint
ECN080-02P3-10S is a function low temperature slip ring with through hole inner diameter Ø80mm, which is designed for automatic equipment that works in the low temperature environment. It can continuous transmit electric power and signals from the stator side to the rotation side stably, and can be combined many kinds data, Optic fiber or RF signals as different customer applications, for more information about how CENO slip ring can fit your specific request please contact us freely.
Features
-
For low temperature application
-
Different sealing forms and boundary can be selected
-
Can be integrated various data
-
Install easily & transmit stably
Applications
-
Automatic machine
-
Packing machine
-
Offshore
-
Aircraft
-
Medical equipment
Optional
-
Circuit, Voltage, Current
-
Signal types
-
Contact / Housing Materials
-
IP Grade
-
Working speed
Specification
| Current & Circuits | 2circuits*15A;10circuits*Signal |
| Rating Voltage | 220 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@300VDC |
| Contact resistance wave range | ≤30mΩ (50rpm) |
| Contact material | Precious Metal |
| Housing material | Aluminum Alloy |
| Working temperature | -40°C~+80°C |
| Working humidity | ≤90%RH |
| Protection Grade | IP51 |
| Operating speed | 0~ 60 rpm |
| Lead wire size | AWG 17# Tin coated Wire Teflon ® UL AWG 22# Tin coated Wire Teflon ® UL |
| Lead wire length | Rotor : 500mm; Stator : 500mm |
| Inner diameter | Ø80mm |
| External diameter | Ø129.5mm |
| Installation | Rotor side Key slot fixed |

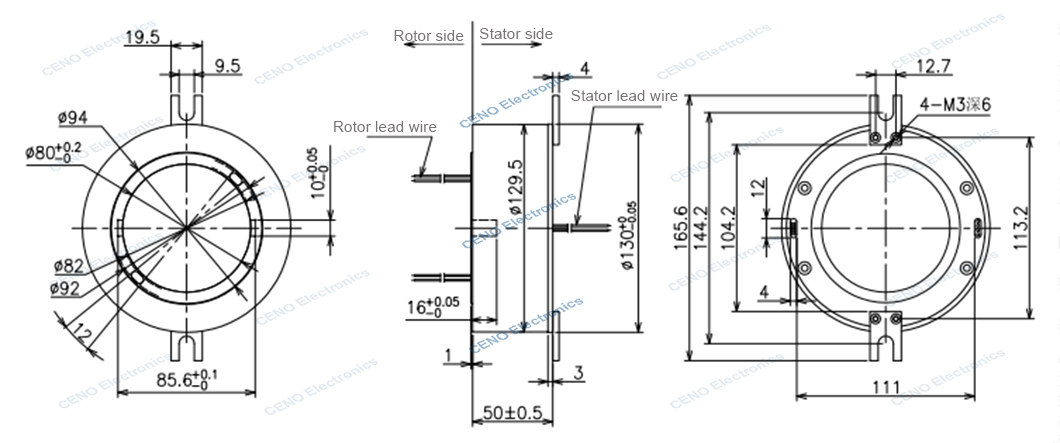

Outline Drawing
The Low Temperature Slip Ring is an essential component that is commonly used in a range of industrial applications. This highly efficient and reliable slip ring is designed to provide uninterrupted power and signal transmission while rotating at high speed. Whether you are looking for a rotary electrical & signal joint or a function slip ring, the Low Temperature Slip Ring is the perfect solution for all your requirements.
One of the most remarkable features of this slip ring is its exceptional low-temperature performance. With a working temperature range of -40°C~+80°C, this slip ring can withstand extreme conditions, allowing it to function flawlessly in any environment. The through-hole slip ring with ID 80mm makes it easy to integrate into any equipment, while the rotating speed of 0~60rpm ensures maximum efficiency and reliability.
The Low Temperature Slip Ring is versatile and can be customized to meet specific needs in different applications. With its modular design, most parameters such as the current rating, voltage, and number of circuits can be tailored to suit the requirements of your particular application. Additionally, the slip ring can be designed to incorporate various types of signals such as Ethernet, CANBUS, and USB, which makes it an excellent solution for data and signal transmission.
Made with top-quality materials and advanced manufacturing techniques, this slip ring is built to last and is resistant to wear and tear. The materials used in construction also make it highly resistant to corrosion, which makes it ideal for use in harsh industrial environments. With its high precision and accuracy, the Low Temperature Slip Ring delivers reliable and consistent performance, ensuring that your operations run smoothly and efficiently.
To sum it up, the Low Temperature Slip Ring is an ideal solution for anyone who needs a reliable and efficient slip ring for their industrial applications. Whether you need a function slip ring or a rotary electrical & signal joint, this slip ring has everything you need for accurate and uninterrupted signal transmission. Contact us today to learn more about how the Low Temperature Slip Ring can help improve your operations.
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
