IP68 8 Channels Fiber Type SM FC-APC Fiber Optic Rotary Joints FORJs Slip Rings

  • 1
  • 2
  • 3

Brand Name : CENO

Model Number : FCN0231G-67A-08-IP68-LL

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 1000pcs per month

Delivery Time : 1 weeks

Packaging Details : Cartons/As request

Fiber type : SM

Fiber channel : 8

Wavelength : 1310~1550nm

Insertion Loss, max : 4dB

Insertion Loss WOW, max : 2dB

Rotation Speed, max : 0~150rpm

Working life : 200*106 Rotation

Torque, max : ≤ 3N*m

Compressive strength : ≤ 10MPa

Work condition : Under seawater 800-1000m / 1000 hours

Lead Wire Length : Rotor: 1000mm, Stator: 1000mm

Connector : FC-APC

Contact Now

IP68 8 Channels Fiber type SM FC-APC Fiber Optic Rotary Joints FORJs Slip Rings

FCN0231G-67A-08-IP68-LL is CENO new FORJs slip ring. Fiber Optic Rotary Joints are to optical signals as what electrical slip rings are to electrical signals, a means to pass signals across rotating interfaces, particularly when transmitting large amounts of data. FORJs maintain the intrinsic advantages of fiber end to end. FORJs are available in signal and multi-channel options. The most cost and size efficient options are the signal and dual channels design. More information please contact us.

Features

  • High bandwidth at wavelength between 1310nm & 1550nm
  • Can be combine with Electrical or kinds of signals
  • Rugged design & easy install

Applications

  • Aerospace
  • OPTO electric pod
  • Security camera
  • Electric Crane
  • Optical coordinate measuring

Optional

  • Fiber type & Channels
  • Wavelength
  • Wire length & Connector
  • Contact / Housing Material
  • Working speed

Specification

FCN0231G-67A-08-IP68-LL

 Specification
Fiber type SM
Fiber channel 8
Wavelength 1310~1550nm
Insertion Loss, max 4dB
Insertion Loss WOW, max 2dB
Rotation Speed, max 0~150rpm
Working life 200*106 Rotation
Torque, max ≤ 3N*m
Compressive strength ≤ 10MPa
Work condition Under seawater 800-1000m / 1000 hours
Lead Wire Length Rotor: 1000mm, Stator: 1000mm
Connector FC-APC

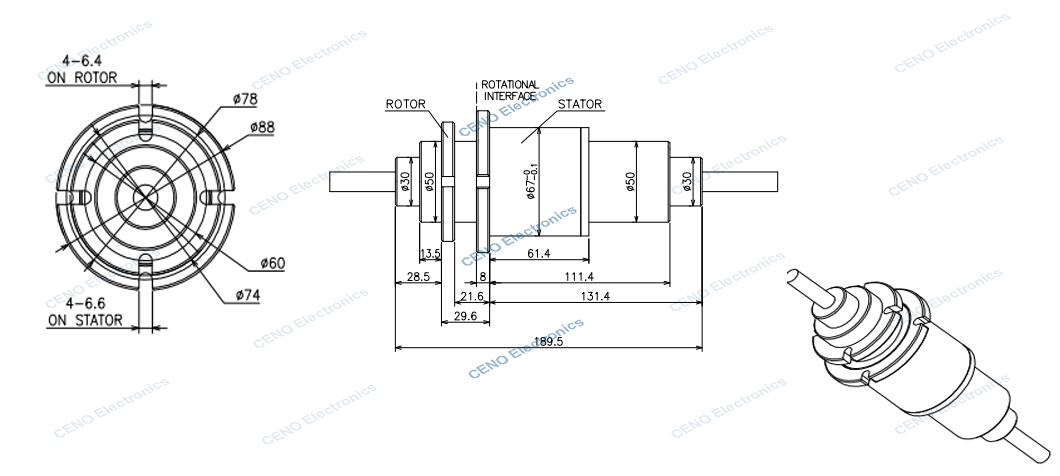

Outline drawing

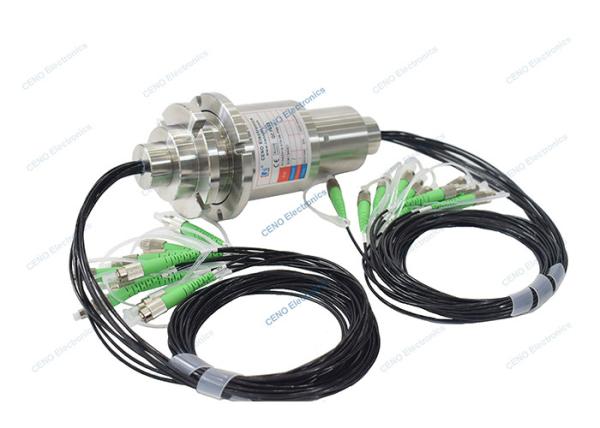

IP68 8 Channels Fiber Type SM FC-APC Fiber Optic Rotary Joints FORJs Slip Rings

CENO Power/Signal + Fiber Opticrotary joint product series

Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.

IP68 8 Channels Fiber Type SM FC-APC Fiber Optic Rotary Joints FORJs Slip Rings
