6 Group K Type Thermocouple Signal Slip Ring With Through Bore 140mm For Industry

Name: 6 Group K Type Thermocouple Signal Slip Ring With Through Bore 140mm For Industry
Brand: CENO
Price: 1 USD

6 Group K Type Thermocouple Signal Slip Ring With Through Bore 140mm For Industry Manufactures

Brand Name : CENO

Model Number : ECN140-12S-IP54

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 1000pcs per month

Delivery Time : 2 weeks

Packaging Details : Crate/As request

Current & Circuits : 6 Group * K Thermo couple signal

Rating Voltage : 0~220 VAC/VDC

Dielectric strength : ≥1000VAC@50Hz

Isolation resistance : ≥500MΩ@500VDC

Electrical Noise : 30mΩ (50rpm)

Contact material : Precious Metal

Housing material : Stainless steel + Aluminum Alloy

Working temperature : -20°C~+80°C

Working humidity : 60 %RH

IP protection grade : IP54

Operating speed : 0~10rpm

Inner diameter : Ø140mm

Lead wire size : K type Thermo couple wire

Lead wire length : Rotor : 5000mm; Stator : 300mm

Contact Now

Product Description:

ECN140-12S-IP54 is CENO Large size K-type Thermo couple signal slip ring with through hole 140mm. CENO has extensive experience in thermocouple conductive slip ring production and has successfully developed and customized thousands of thermocouple conductive slip rings in the field of thermocouple signal conductive slip rings. The significant advantage is that it has a long service life and is not affected by changes in ambient temperature. For more information please contact us.

Features

Through hole design and 3mm - 1000mm is optional
High measurement accuracy
Wide temperature measurement range and simple assembly

Applications

CNC Machine
Automatic feeding
Tandem cold rolling mill
Converter tilting equipment
SMT Machine

Optional

Circuit, Voltage, Current
Inner bore size
Contact / Housing Materials
Protection grade
Working speed & temperature

Technical Parameters:

ECN140-12S-IP54	Specification
Current & Circuits	6 Group * K Thermo couple signal
Rating Voltage	0-220VAC/VDC
Dielectric strength	≥1000VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Contact resistance	30mΩ (50rpm)
Contact material	Precious Metal
Housing material	Aluminum Alloy
Working temperature	-20°C~+80°C
Working humidity	60 %RH
IP protection grade	IP54
Operating speed	0~10rpm
Inner diameter	Ø140mm
Lead wire length	Rotor : 5000mm; Stator : 300mm
Rotation Way	Rotor side fixed on customer rotation shaft with screws

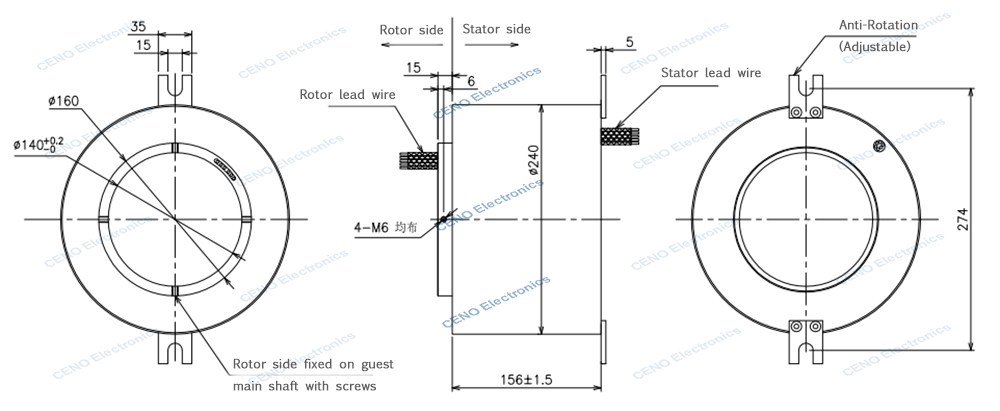

Outline drawing:
6 Group K Type Thermocouple Signal Slip Ring With Through Bore 140mm For Industry

Support and Services:

We provide technical support and service for our Industrial Slip Rings. Our team of experts is available to assist you with any technical questions or solutions you may have. We also offer a variety of services including installation and maintenance, troubleshooting, and custom solutions.
If you need assistance, please contact us through our website or call us directly. We will do our best to help you find the right solution for your application.
We strive to provide the best possible customer service and product support. If you have any questions or concerns, please don’t hesitate to contact us.

Packing and Shipping:

Industrial Slip Ring Packaging and Shipping:

The slip rings meet the requirements of the relevant international codes and standards.
Slip rings are packed in wooden cases or metal boxes.
Large packages are shipped by sea or air.
Small packages are shipped by express.
Each package is labeled with product name, model, size, quantity, origin, etc.
The packages are inspected to ensure that the products are delivered in good condition.

FAQ:

Q: What is the brand name of your Industrial Slip Ring?
A: Our Industrial Slip Ring is CENO brand.
Q: What is the model number of your Industrial Slip Ring?
A: The model number of our Industrial Slip Ring is ECN000-04P-08S.
Q: Where is your Industrial Slip Ring manufactured?
A: Our Industrial Slip Ring is manufactured in China.
Q: What is the minimum order quantity of your Industrial Slip Ring?
A: The minimum order quantity of our Industrial Slip Ring is 1pcs.
Q: What is the delivery time of your Industrial Slip Ring?
A: The delivery time of our Industrial Slip Ring is 2 weeks.
