36 Circuits 10A Hollow Shaft Slip Ring With Electrical Collector For Industrial

Brand Name : CENO

Model Number : ECN050-36P2

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 1000pcs per month

Delivery Time : 1 week

Packaging Details : Carton/As request

Current & Circuits : 36 circuits * 10A

Rating voltage : 0~380 VAC/VDC

Dielectric strength : ≥1000VAC@50Hz

Isolation resistance : ≥500MΩ@500VDC

Electrical noise : ≤30mΩ (50rpm)

Operating speed : 0~300rpm

Contact material : Precious metals

Housing material : Aluminum alloy

Working temperature : -20°C~+60°C

Working humidity : Max60%

IP protection grade : IP54

Through hole size : Ø50mm

Lead wire size : AWG17# Tin coated Teflon® UL

Lead wire length : Rotor : 300mm Stator : 300mm

Rotation way : Fix up stator side on guest shaft with screws

Contact Now

Hollow Shaft Slip Ring With Electrical Collector For Industrial Application

ECN050-36P2 is CENO’s new product through hole slip ring, also called through bore, hollow shaft slip ring or electrical collector, due to it has high performance and economic, it’s widely used to various industrial machinery, harsh environments as the mines, mountains and the offshore. CENO have over 5000 designs and most of the slip ring parameters are optional, if you can not find perfect slip ring to fit your specific application in our product list, please contact us slip ring expert, we will design for you.

Features

  • Quiet mechanical system work
  • Through hole diameter 3mm-2000mm are optional
  • Can be integrated various data
  • Install easily & transmit stably

Applications

  • Automatic machine
  • Harsh environment
  • Offshore
  • Industrial machinery
  • Mines / Mountain areas

Optional

  • Circuit number & Current
  • Boundary dimension
  • Contact / Housing Materials
  • Protection grade
  • Working speed

Specification

ECN050-36P2

 Specification
Current & Circuits 36 circuits*10A
Rating Voltage

0~380VAC/VDC
Dielectric strength ≥1000VAC@50Hz
Isolation resistance ≥500MΩ@500VDC
Contact resistance 30mΩ
Contact material Precious Metal
Housing material Aluminum alloy
Operating speed 0~300rpm
Working temperature -20°C~+60°C
Working humidity 60%
IP protection grade IP54
Lead wire size AWG 17# Tin coated Teflon® UL
Lead wire length

Rotor : 300 mm

Stator : 300 mm
Inner Diameter 50mm
Rotation way Fix up stator side on guest shaft with screws

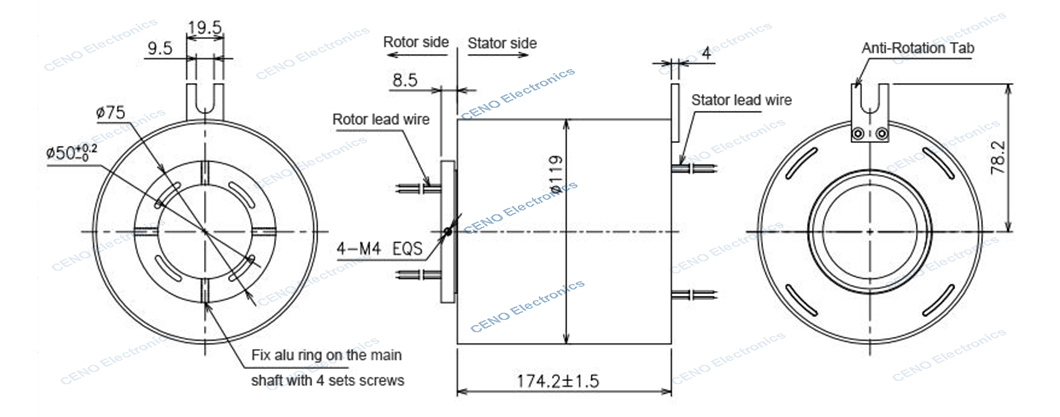

Outline Drawing

36 Circuits 10A Hollow Shaft Slip Ring With Electrical Collector For Industrial

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

36 Circuits 10A Hollow Shaft Slip Ring With Electrical Collector For Industrial

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

36 Circuits 10A Hollow Shaft Slip Ring With Electrical Collector For Industrial

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

36 Circuits 10A Hollow Shaft Slip Ring With Electrical Collector For Industrial

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
