Large Size Inner bore 160mm Industrial Slip Rings combine with data Signal
Large inner bore size industrial slip ring with 160mm bore,working temperature -20°C ~ +60°C,used for sewage treatment,military applications,packaging machine etc,.
CENO’s customized product ECN160-08P-10S Large Size / Signal / Industry Slip Rings with through bore size160 mm, it can combine with data signal, electric power, Ethernet, USB and CANBUS etc., and it can be mounted by flange or spindle. CENO's signal integrated slip rings have features of low torque, low electrical noise, low resistance fluctuation and optional path. The main application areas are radar system, rotary motor, robotics and so on, CENO have many years experience on researching and developing Slip Rings.
Specification
| ECN160-08P-10S | Specification |
| Circuit & Current | 8*60A; 10*Signal |
| Rating voltage | 0~380VAC / 24VDC |
| Dielectric strength | ≥1000VAC@50Hz (Power) ≥300V@50Hz (Signal) |
| Insulation Resistance | 500MΩ@100VDC 100MΩ@100VDC |
| Contact resistance fluctuation | ≤70mΩ(50rpm) |
| Working temperature | -20℃~+60℃ |
| Working Humidity | 60% |
| Working speed | 0~100rpm |
| Contact material | Precious material |
| Housing material | Stainless steel |
| Installation way | Rotor end fix with flange |
| Inner Diameter | Ø160mm |
| Protection grade | IP51 |
Features
• Combine with data signal
• Multi power & signal channels
• Low contact resistance fluctuation
• Optional installation way
Applications
• Radar antenna
• Photoelectric composite system
• Dilling machine
• Military airborne
Optional
• Circuit no.& current rating
• Rotation speed
• Protection grade
• Signal types

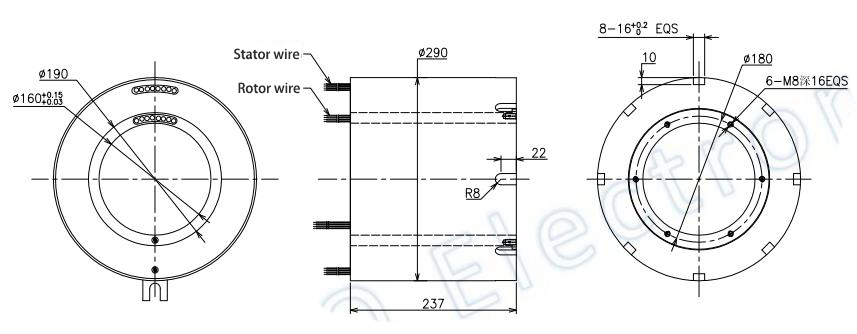

Outline drawing:
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
