IP66 Waterproof Slip Ring Through Hole For Industry Marine Equipment

Brand Name : CENO

Model Number : ECN130-03P4-IP66

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 1000pcs per month

Delivery Time : 1 week

Packaging Details : Carton/As request

Current & circuits : 3 circuits * 20A

Rating voltage : 0~380VAC/DC

Operating speed : 0~4rpm

Working temperature : -20°C~+80°C

Protection grade : IP66

Install way : Fix the rotor side to the guest shaft with screws

Through hole size : Ø130mm

External diameter : Ø220mm

Contact Now

Slip ring with waterproof IP66 through hole for industry marine equipment

ECN130-03P4-IP66 is a water proof slip ring with the Protection grade IP66 from CENO electronics company, there are 3 circuits for 20A power with rating voltage 380VAC/DC, it can work stably at the speed of 0~4rpm. Due to it’s strong sealing performance the IP grade IP65, IP66, IP67, IP68 is optional according to customers’ request. CENO’s water proof slip ring is mainly applied to Boats and ship machinery, Port Machinery, Offshore or Marine equipment, humid wet environments etc.

Features

  • Du to i’s strong sealing performance the IP grade is optional and be up to IP65, IP66, IP67, IP68
  • Transmit stably

Applications

  • Boats and ship machinery
  • Offshore equipment
  • Filling platform
  • Humid cold environment

Optional

  • Circuit number & Current
  • Working speed
  • Protection grade
  • Bore size

Specification

ECN130-03P4-IP66

 Specification
Current & Circuits 3 circuits * 20A
Rating Voltage 0~380VAC/DC
Dielectric strength

≥1000VAC@50Hz (P)

≥500VAC@50Hz (S)
Isolation resistance ≥500MQ@500VDC
Contact resistance float ≤20mΩ
Lead wire length

Rotor wire : 300mm

Stator wire : 300mm
Operating speed 0~4rpm
Contact material Precious Metal
Housing material Aluminum alloy
Working temperature -20°C~+80°C
Working humidity 80% below
IP protection grade IP66
Inner diameter Ø130mm
External diameter Ø220mm
Lead wire size 2.5mm² lead wire
Install way Fix the rotor side to the guest main shaft with screws

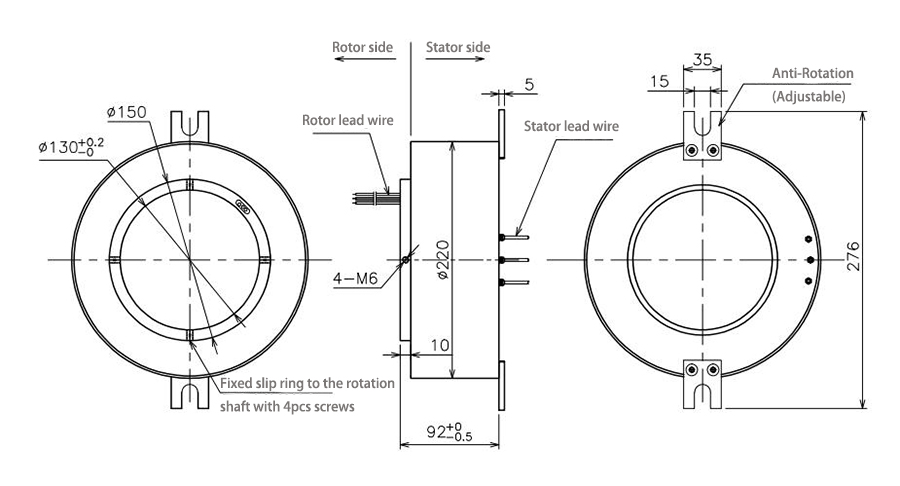

Outline drawing

IP66 Waterproof Slip Ring Through Hole For Industry Marine Equipment

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


Why with CENO

IP66 Waterproof Slip Ring Through Hole For Industry Marine Equipment

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

IP66 Waterproof Slip Ring Through Hole For Industry Marine Equipment

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

IP66 Waterproof Slip Ring Through Hole For Industry Marine Equipment

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
