IP65 Fiber Optic Rotary Joints No Contact No Friction For Medical Equipment
Fiber Optic Rotary Joints (FORJs)
For more than 10 years, CENO has focused on the rotary interface needs of the energy industries.
Today, our fiber optic rotary joints (FORJs) are recognized around the world for innovative performance and reliability in harsh marine environments.We design for demanding conditions. Rigorous testing of every FORJ is performed in our own environmental testing chambers and the facilities of testing specialists. Standard features, such as connectorized interfaces that allow for easy replacement of damaged pigtails, are designed to minimize down time.Our engineers have the resources to design for performance reliability in unique environmental conditions such as subsea depths of more than 18,000 feet (5.5 km), high altitudes for aerospace applications or extreme temperature conditions. We can also design for extra-long life or higher than average speeds.
Recent product development also includes a variety of single and multiple channel devices for singlemode applications.
Main Uses
◆ Antenna system
◆ Testing machine
◆ Rotary table
◆ Packing machine
Product Features
◆ Connectors are optional
◆ Non-contact technology provides long life and maintenance free operation
◆ The smallest size worldwide
Specification
| Parameter | Value |
| Channel number | 2-4 |
| Fiber type | SM/MM |
| Wave length | 650-1650nm |
| Insertion loss | ≤ 5dB |
| Insertion loss ripple | ≤ 3dB |
| Rotation speed | 150rpm |
| Estimated life cycle | 50 million revolutions |
| Rotation torque | ≤3N.m |
| IP grade | IP65 |
| Operation temperature | -40℃～+70℃ |
| Operation humidity | ≥95% |
| Fiber | Φ3.0 single core fiber |
| Connector type | FC/PC/SMA |
| Housing material | Stainless steel |

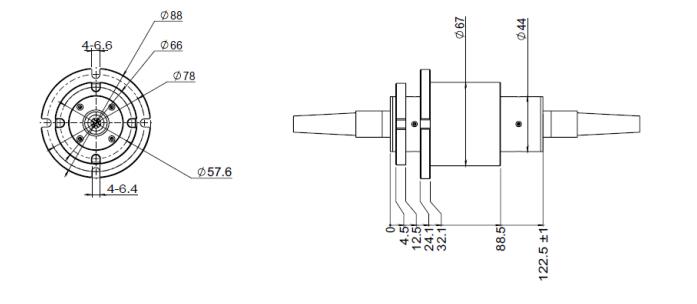

Outline drawing :
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
