Slip Ring High Speed Compact Through Hole Rotary Joint For Miniature Generator Motor Assembly
The ECN040-05P2-24S is a high speed compact through bore slip ring,it provides an economical, readily available solution when a compact through-bore configuration is required.
CENO company produce the conductive slip ring with compact size,light weight,high reliability, maintenance free and protection level can reach IP68,that is the important reason why many manufacturers choose us.
Features
- Easy to install
- Continuous transmission signal or data under 360° rotation
- High IP protection
Applications
- Automation equipment
- Miniature Generator Motor Assembly
Optional
- Circuit number
- IP protection grade
- Current rating
- Signal type
Specification
| ECN040-05P2-24S Specification | Picture |
| Current | 5*10A; 24*5A |  |
| Working Temperature | -40℃~+80℃ |
| Protection Grade | IP51 |
| Working speed | 0~250rpm |
| Contact material | Precious metal |
| Rating Voltage | 380VAC |
| Through hole size | 40mm |
| Lead Wire Length | 1000mm |

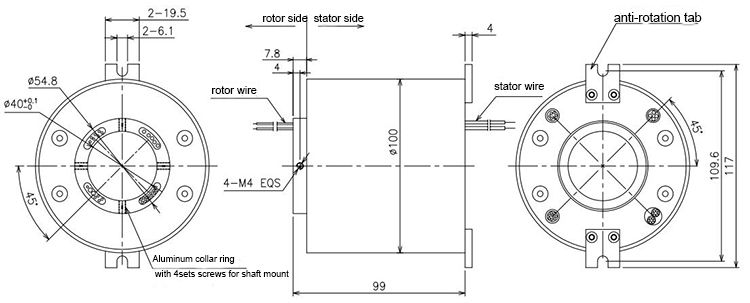

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
