This is large size slip ring for motion simulator, inner diameter reaches 220mm. It can transmit current and signal at the same time ,including RS232 signal, PAL signal,100M Ethernet signal. stable transmission ,no package loss,no cross talk,low loss. housing material stainless steel and aluminum alloy.
Specification
| ECN220-06P-17S-02EM |
| Current | 6*30A,4*RS232 signal,2*PAL signal, 2*100M Ethernet |
| Voltage | 0~220VAC/VDC |
| Electrical noise | ≤15mΩ(50rpm) |
| Dielectric strength | ≥1000V@50Hz(power) ≥300V@50Hz(signal) |
| Insulation resistance | ≥500MΩ@500VDC(power) ≥100MΩ@100VDC(signal) |
| Operating speed | 0-30 rpm |
| Contact material | precious metal |
| Housing material | Stainless steel |
| Through bore size | 220mm |
| IP protection grade | IP51 |
Applications
- Motion simulator
- Large engineering equipment
- Automation equipment
Optional
- Voltage
- Through hole size
- Circuit number
- Current rating
- IP protection grade

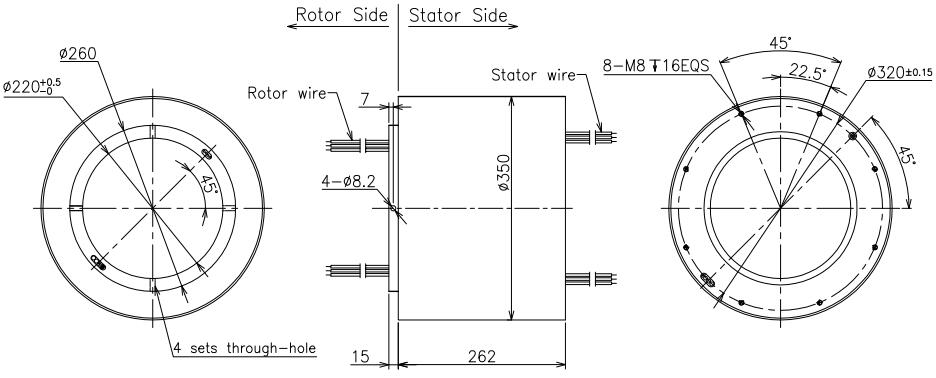

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
